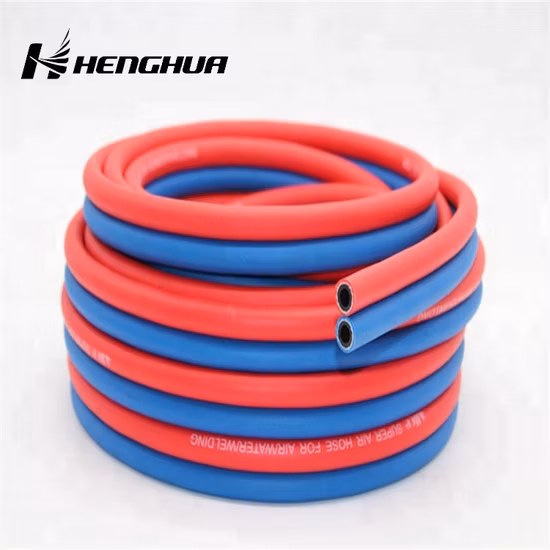

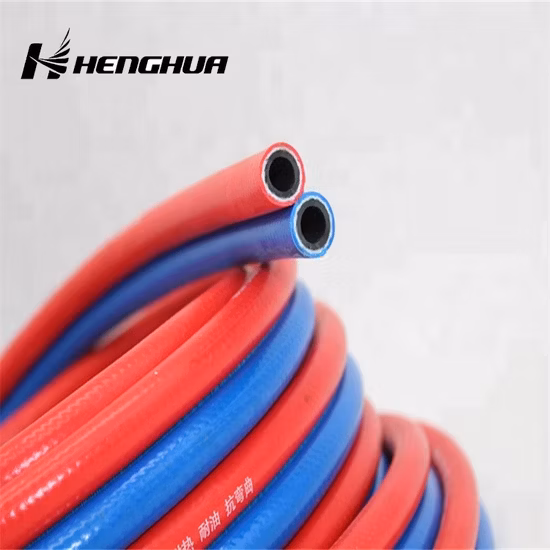

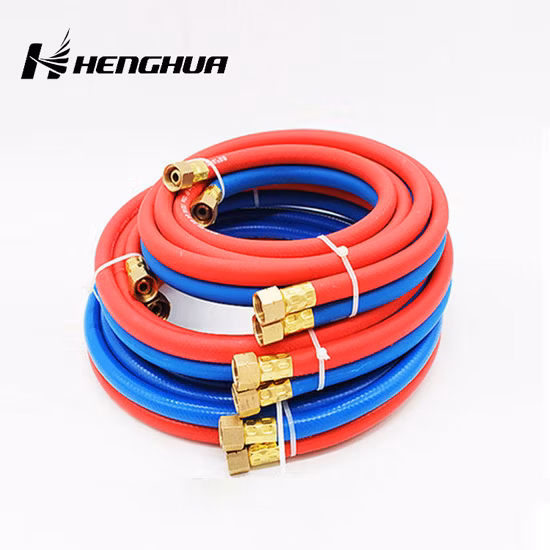

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

1. PVC Air Hose Construction: Tube: PVC material Reinforcement: 1 ply or 2ply high tensile polyester braiding Cover: PVC
Basic Info.
Model NO. PVC air hose
Usage Water Supply Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Feature Flexible, High Pressure, Anti-Erosion and Explosio
Reinforcement High Tensile Polyester
B.P 60 Bar
Packing Plastic Film or Woven Bag or as Required.
Application High Pressure Pneumatic Tool or Equipment
Temperature -10ºC to +65ºC
Transport Package Wooden Case or as Customers′ Requirment
Specification 20mm-1400mm
Trademark HENGHUA
Origin Tianjin, China
Production Capacity 1000000 Meter Per Month
Product Description

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

1. PVC Air Hose


Construction:
Tube: PVC material
Reinforcement: 1 ply or 2ply high tensile polyester braiding
Cover: PVC, black, red, yellow, blue


Application:

The PVC air hose is widely used in pneumatic tools, air compressor, rock drill, automated air line, air supply, cleaning equipment, construction equipment and so on.


Feature:

- High tensile polyester renforced
- Work under high pressure 300 psi
- Strong peeling adhesion between fibre and pvc
light, flexible, non-kinking, non-twisting
- UV and ozone resistant, weather resistant
- Can be used for jackhammer hose

Temperature: -10ºC(-50°F)to 65ºC(+150°F)

Low Price Flexible PVC Blue High Pressure Oxygen Hose with Connectors

2. Multi-purpose TPR Hose 300PSI

Construction :
Tube and Cover:TPR(NBR/PVC), smooth, oil resistance Reinforcement : 1plyor2plypolyester braiding
Application :
The multi purpose TPR(rubber/pvc mixed) air hose is designed for pneumatic tools, air compressors , Rock drill, automated air line, air supply, cleaning equipment, construction equipment and so on.
Characteristics :
- Oil mist resistant tube and cover.
- Ozone and UV resistant, weather resistant.
- Flexible and non-kinking.
- Black yellow, red, more color choices
Temperature :−30°C(−22°F) to+80°C(+176°F)

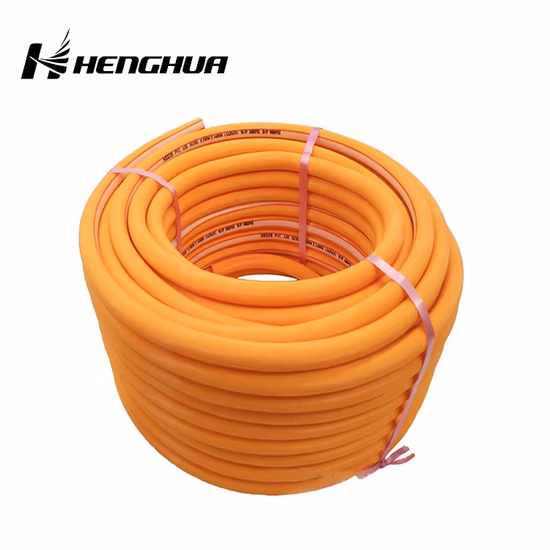

3. HYBRID AIR HOSE
Construction :
Tube and cover: Specialized blend of rubber and pvc Reinforcement :high tensile polyester braiding
Application :
The hybrid air hose is widely used in pneumatic tools,
air compressors , automated air line, air supply, cleaning
equipment, construction equipment and so on.
Temperature :−30ºC(−22°F) to65ºC(+150°F)
Characteristic :
- Extreme all-weather flexibility
- Flexible even in sub-zero temperatures
- Max working pressure300psi
- Excellent abrasion-resistant outer cover
- Light weight, flexible, non-kinking, non-twisting
- UV and ozone resistant, Anti-aging
- With 1/4"NPT fittings

Henghua Hydraulic offers a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries.

Our hydraulic hose range includes 1SC, 2SC, 100 R1-R17, 4SP, 4SH ,1SN,2SN,1-3TE& suction & delivery hose, along with compatible hose inserts and ferrules.

If you're not sure what type of hose you should be using for your application, please get in touch and we will provide you with the correct hose for the job!

We don't only supply loose hose and hose fittings we can also make bespoke hose assemblies to your given specification, get in touch with our friendly sales team to discuss your hose assembly needs today.

Hydraulic Hose Reinforcement Product Name
One steel wire braided SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17
Two steel wire braided SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC
One/two wire braided SAE R16
Four steel wire spiral SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH
High flexibility nylon or thermoplastic SAE R7,SAE R8
Industrial Hose Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose
Product Name Chief Introduction
Air Hose High strength synthetic yarn reinforced
Water Hose High strength synthetic yarn reinforced
Oil Hose Single/double synthetic yarn braided or spiraled
Welding Hose High strength synthetic cord reinforced
Gas Hose(LPG Hose) High tensile synthetic yarn braided or spiraled
Heat Resistent Hose 1 or 2 piles of fiber braid reinforcement
Air Condition Hose(Freon Hose) Strengthen lining is weaving fiber

FAQ:1.What hose do you provide?HENGHUA pipeindustry company offer hundreds of products. Main hose products:high pressure steel wire braided hose,high pressure steel wire spiral rubber hose,steel wire winding hose,flame retardant,resistance to high temperature and high pressure drilling hoseassembly,marine high pressure oil hose,expansion pipe,metal hose,rollers,rubber seals,etc2.What are the product applications?Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage / gas discharge / warm air duct3.What are your advantages?High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification, ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification,mining products safety sign,etc. Products are sold well all over the country, and exported to India,British,Russia,Turkey,Germany, the United States and other countries,favored by the users.
